商品描述

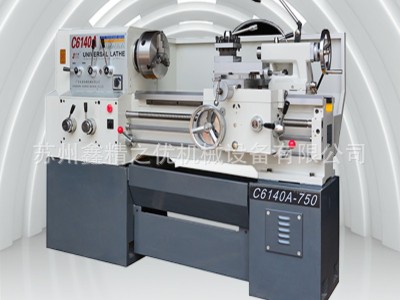

■机床介绍
本系列车床具有广泛用途，主要用于各种回转零件的外圆、内孔、端面、锥度、切槽及公制螺纹、模 数螺纹、径节螺纹等的车削加工，此外还可以用来进行钻孔、絞孔、套料、扩孔、滚花、拉槽等加工。
本系列车床加工精度可达IT7级(按GB1800-79),加工表面粗糙可达。
■机床特性
标注配件：照明装置、冷却装置、三爪卡盘、三角皮带、刹车线、随机工具。
特殊附件：四爪卡盘、四爪法兰、花盘、中心架、跟刀架。
■机床参数
车床型号/ Lathe Type | C6132A | C6232A | C6140A | C6240A | ||
主要规格 Main Specif ication | 中心局 Height of Center | 175mm | 202mm | |||
床身最大回转直径 Maximum Rotating Diameter of Lathe Bed | 350mm | 400mm | ||||
最大工作长度 Maximum Length ofWorkpiece | 75 0mm/1000mm/15 00mm | |||||
刀架最大行程(纵向) Maximum Stroke (Lengthways) | 650mm | 650mm/900mm/l 400mm | ||||
刀架上最大工件回转直径 Maximum Rotating Diameter of the Rest | 190mm | 240mm | ||||
马鞍槽内最大工件回转直径 Maximum workpiece rotation diameter in the saddle slot | 520mm | 580mm | ||||
花盘取马鞍有效长度 Effective length of front saddle of faceplate | 200mm | 200mm | ||||
棒料直径 Bar Diameter | 45mm或(or) 53mm | |||||
主轴 Spindle | 通孔直径 Through-hole Diameter | 46mm或 (or) 54mm | ||||
锥孔 Bore-hole | MT6 | |||||
转速50Hz Revolving Speed 50Hz | 25 ~ 1600r/min正反各 12种 25 ~ 1600r/min 12 kinds of positive and negative rotational speed | |||||
刀架 Rest | 刀架横向最大行程 Maximum Horizontal Stroke of the Rest | 240mm | ||||
小刀架最大行程 Maximum Stroke of Lathe Compound Rest | 140mm | |||||
纵向刻度值 Longitudinal Scale Value | 0.5mm/格(grid) lOOmm/r | |||||
横刀架刻度值 Scale Value of Horizontal Rest | 0.05mm/格(grid) 4mm/r | |||||
小刀架刻度值 Scale Value of Lathe Compound Rest | 0.05mm/格(grid) 3mm/r | |||||
刀架回转角度范围 Range of Rotation Angle | ±45° 1。/格(grid) | |||||
主轴中心线至刀具支承面距离 Distance between Spindle Center to Binding Face | 22mm | 27mm | ||||
刀杆截面尺寸(高x宽) Section al Dimension of Tool Shank (Height* Width) | 20mm x 20mm | 25mm x 20mm | ||||
纵向进给量 Longitudinal Feed | 0.04 - 2.16mm/r 138种(kinds) | |||||
横向进给量 Transverse Feed | 0.02 - 1.08mm/r 138种(kinds) | |||||
主轴中心线至方刀架侧面最大距离 Maximum Distance between Spindle Center to Side of Square Tool Post | 205mm | |||||
尾座 Tailstock | 顶尖套内孔锥度 Inner Bore Taper ofTailstock Quill | MT4 | ||||
顶尖套最大移动量 Maximum Movement ofTailstock Quill | 130mm | |||||
横向最大移动量 Maximum Horizontal Movement | ± 10mm | |||||
螺纹 Screw Thread | 公制 Metric | 0.45 ~20mm 30种(kinds) | ||||
英制 Inch | 80-l|n/l" 35种(kinds) | |||||
模数 Module | 0.25 ~ 10mm 25种(kinds) | |||||
径节 Diametric | 160 ~ 3* DP 30种(kinds) | |||||
电机 Motor | 主电机 Main Motor | YD132M-8/4 B5TH 3/4.5kw | ||||
主电机转速50Hz Revolving Speed of Main Motor 50Hz | 750/1500 r/min | |||||
冷却泵电机 Cooling pump motor | AB-25 90W | |||||
外形尺寸 长*宽*高 Overall Dimension (length*widdi*height | 中心距 Center Distance | 750mm | 1950mm x 900mm x 1200mm | 1950mm x 900mm x 1250mm | ||
1000mm | 2150mm x 900mm x 1200mm | 2150mm x 900mm x 1250mm | ||||
1500mm | 2650mm x 900mm x 1200mm | 2650mm x 900mm x 1250mm | ||||
净重 Net weight | 中心距 Center Distance | 750mm | 1300kg | 1350kg | ||
1000mm | 1400kg | 1450kg | ||||
1500mm | 1500kg | 1550kg | ||||
皮带 Belt | 主传动三角尾带型号规格 Type Specification of Main V Belt Drive | A-1900 mm | A-1950mm | |||
