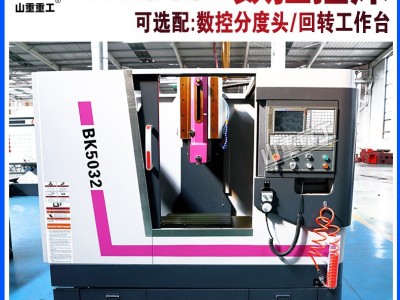

数控插床BK5032数控立式插销机自动分度开槽机 数控插销机床 1台

滑枕最大插削长度

Max. ram slotting length

mm

320

滑枕运动次数

Ram moving frequency per minute

times/min

20-80

滑枕垂直调整距离

Ram vertical adjustment distance

mm

315

刀头支撑面到床身前壁间距离

Distance from cutter head to column surface

mm

600

滑枕底端到工作台面距离

Distance between ram lower end to table surface

mm

490

工作台尺寸

Table size

mm

600*320

工作台行程(X/Y)

Table travel (X/Y)

mm

620*560

X向电机扭矩

X axis motor torque

N.M

7.7

Y向电机扭矩

Y axis motor torque

N.M

7.7

X轴快速移动

X axis rapid traverse speed

m/min

5

Y轴快速移动

Y axis rapid traverse speed

m/min

5

主电机功率

Main motor power

kw

4

机床重量

Machine weight

kg

3700

外形尺寸(长×宽×高)

Overall dimension

mm

2800*2400*2500
