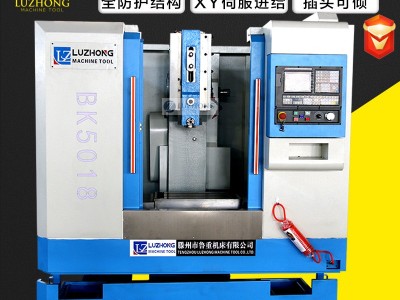

数控插床 立式数控插齿机BK5018数控插床 切槽机床小型键槽机 1台

滑枕最大插削长度

Max. ram slotting length

mm

180

滑枕运动次数

Ram moving frequency per minute

times/min

30-120

滑枕垂直调整距离

Ram vertical adjustment distance

mm

80

刀头支撑面到床身前壁间距离

Distance from cutter head to column surface

mm

680

滑枕底端到工作台面距离

Distance between ram lower end to table surface

mm

400

工作台尺寸

Table size

mm

600*320

工作台行程(X/Y)

Table travel (X/Y)

mm

300*300

X向电机扭矩

X axis motor torque

N.M

6

Y向电机扭矩

Y axis motor torque

N.M

6

X轴快速移动

X axis rapid traverse speed

m/min

5

Y轴快速移动

Y axis rapid traverse speed

m/min

5

主电机功率

Main motor power

kw

3.7(伺服)

机床重量

Machine weight

kg

2000

外形尺寸(长×宽×高)

Overall dimension

mm

2200*2100*2300
